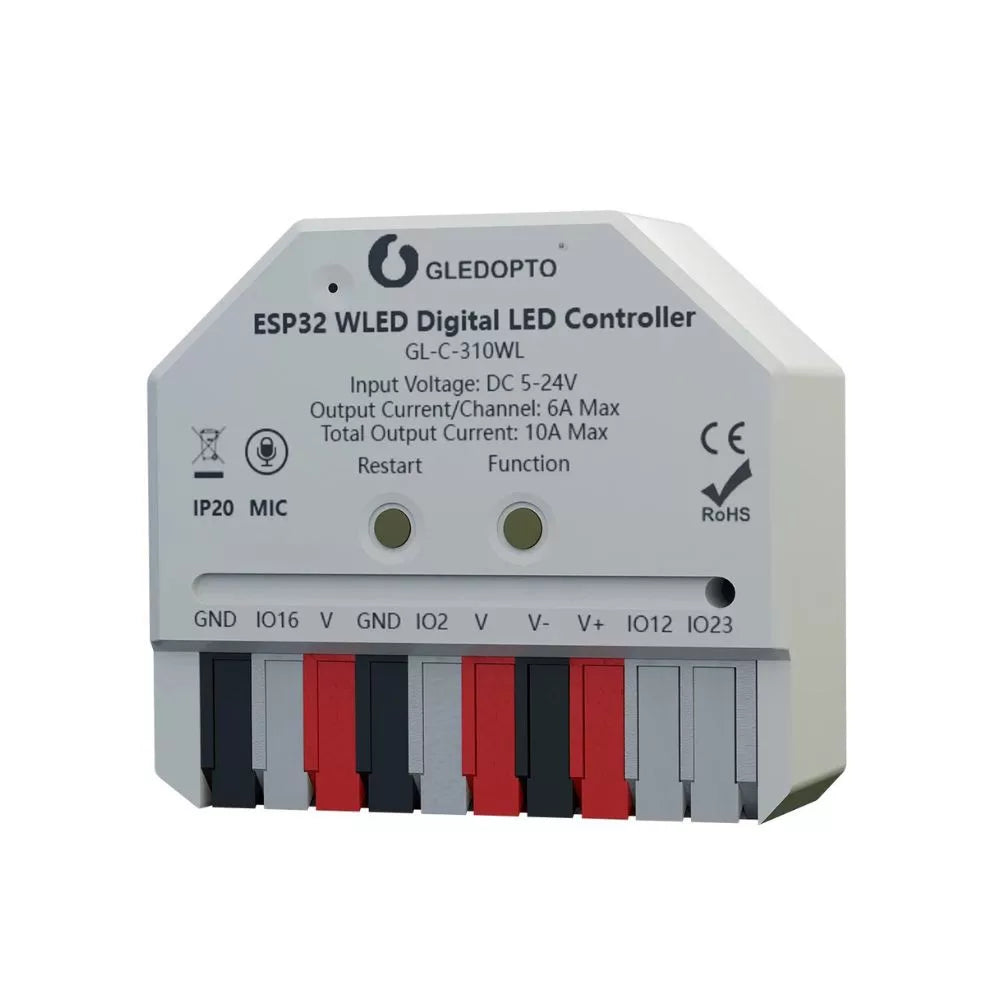

Gledopto ESP32 Mini WLED Digital LED Controller (GL-C-310WL) is an extremely compact, high-performance controller designed specifically for addressable RGBIC LED strips. At just 42 mm in size, this controller is designed to easily hide in standard wall boxes, behind ceiling moldings, or neatly tucked away behind a computer monitor.
It comes pre-installed with the industry-leading WLED firmware, completely bypassing restrictive proprietary apps. It connects directly to your Wi-Fi network, offering over 100 customizable lighting effects and full, 100% local integration with platforms like Home Assistant.
Key Features
-

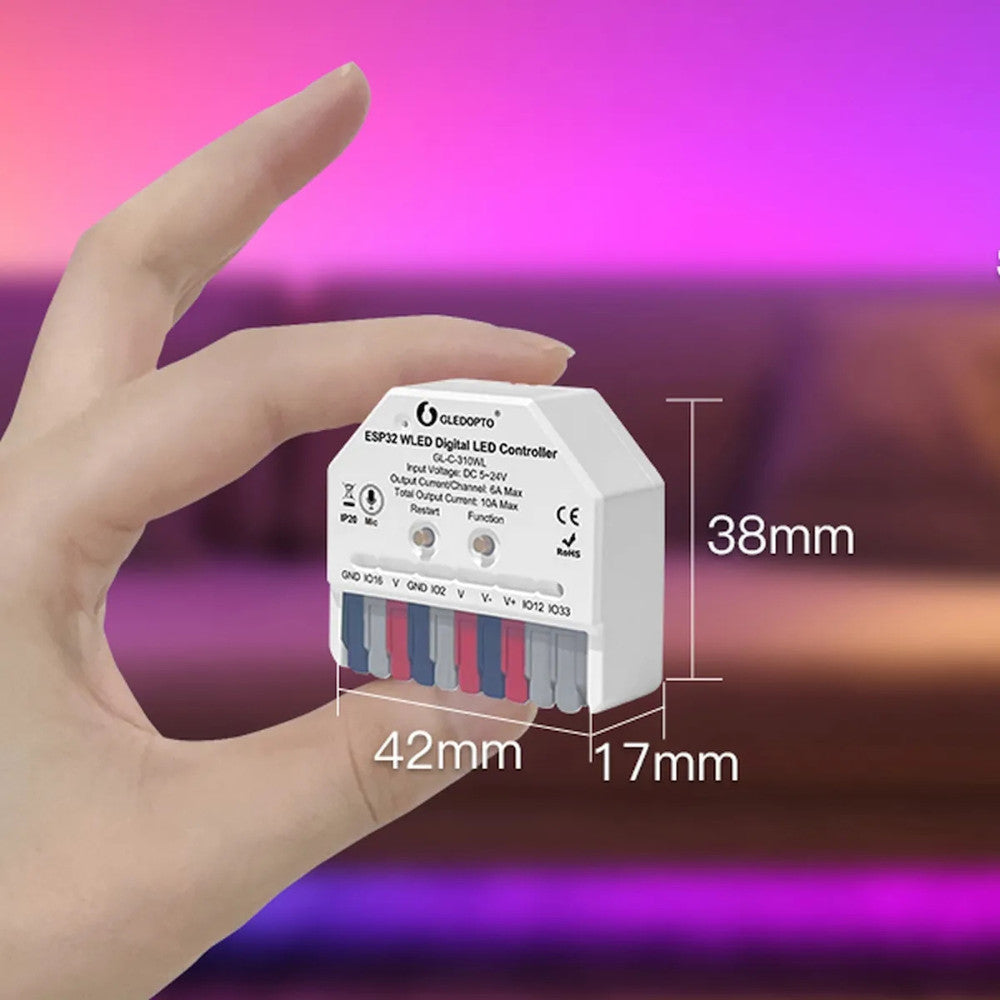

Ultra-Mini Design: Thanks to its incredibly small size (42 x 38 x 17 mm), this is one of the smallest ESP32-based LED controllers on the market. It is ideal for discreet smart home installations where larger control boxes would be an eyesore.
-
Pre-installed WLED: Forget about installing firmware yourself. It is ready for use right out of the box with the powerful, open-source WLED interface. Access a massive library of dynamic effects, color palettes, and segment mapping tools directly from your web browser or the WLED app.
-

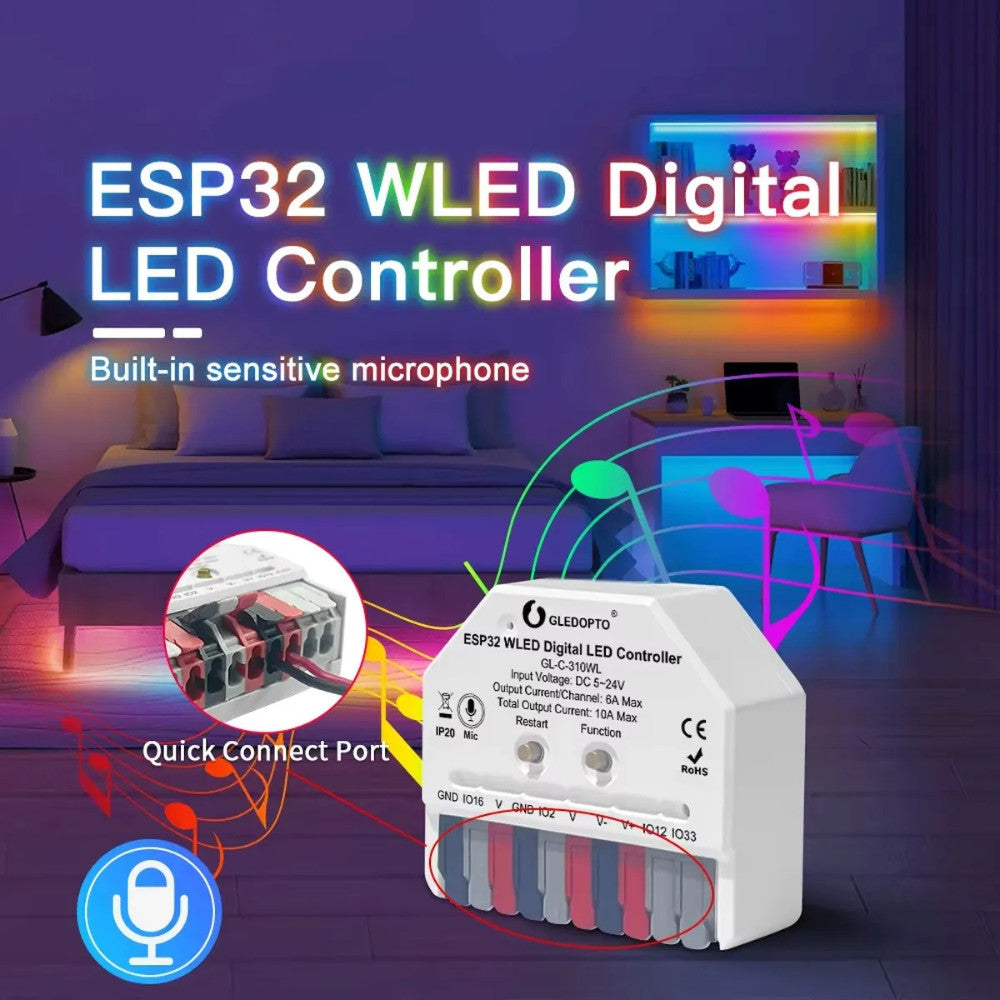

Built-in Microphone for Music Sync: Features a built-in I2S PDM microphone. By enabling AudioReactive features within WLED, the controller instantly syncs your LED strips to the beat of your music, game audio, or ambient room noise, without the need for an external PC with synchronization software.
-
High Power Performance: Despite its small size, it can handle a total load of 10A across a wide range of DC input voltages from 5V to 24V. This allows for clean and safe powering of hundreds of high-density pixels (such as WS2812B or SK6812 strips).
-
ESP-NOW Remote Control Support: Fully compatible with the Gledopto 12-key WLED remote control (GL-RC-002WL) via the ESP-NOW protocol, allowing you to instantly trigger presets and adjust brightness even if your Wi-Fi router is offline.
Technical Specifications
| Feature | Specification |
| Model | GL-C-310WL (ESP32 Mini WLED) |
| Platform / Microcontroller | ESP32 (optimized for WLED) |
| Supported Protocol | Wi-Fi (802.11 b/g/n 2.4 GHz) |
| Supported LED Chips (IC) | WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703P, TM1814, etc. |
| Input Voltage | DC 5V / 12V / 24V |
| Maximum Load | 10A total output (max 6A per channel) |
| Maximum Power | 240W (at 24V) |
| Built-in Microphone | Yes (generic I2S / WLED AudioReactive ready) |
| Housing Material | Fire-retardant polycarbonate (PC) |
| Protection Rating | IP20 (indoor use only) |
| Operating Temperature | -20 °C to +45 °C |
| Dimensions | 42 mm × 38 mm × 17 mm |
| Weight | ~25 g |
Package Contents
-
Gledopto ESP32 Mini WLED Digital LED Controller (GL-C-310WL)
-
Adhesive mounting pad
-
Quick Start Guide
(Note: Requires an appropriate 5V, 12V, or 24V DC power supply that matches the voltage requirements of your specific LED strip.)
